SainSmart 4030 6060 45mm Diameter Hose Clamp Digital Download

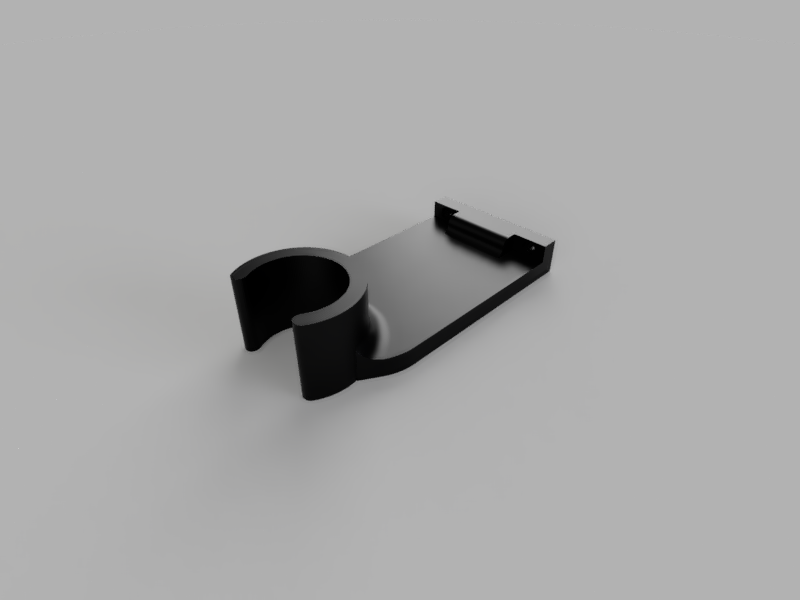

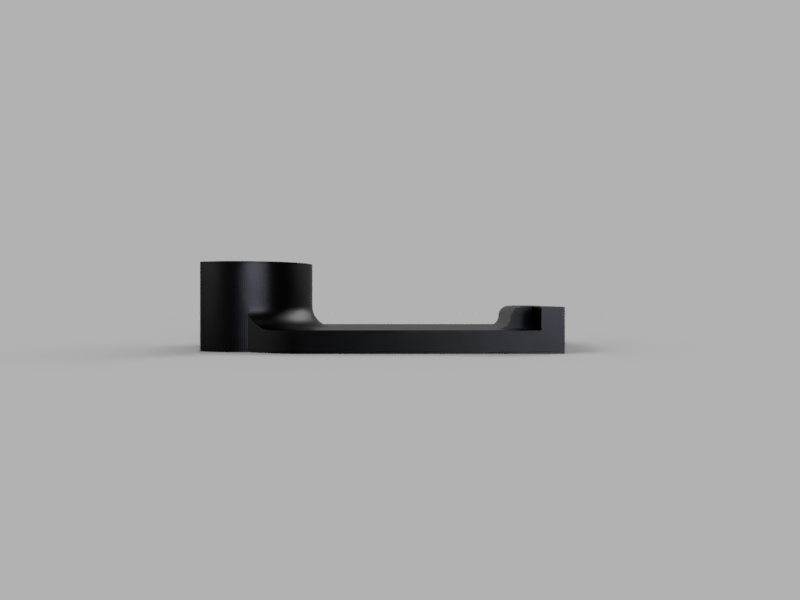

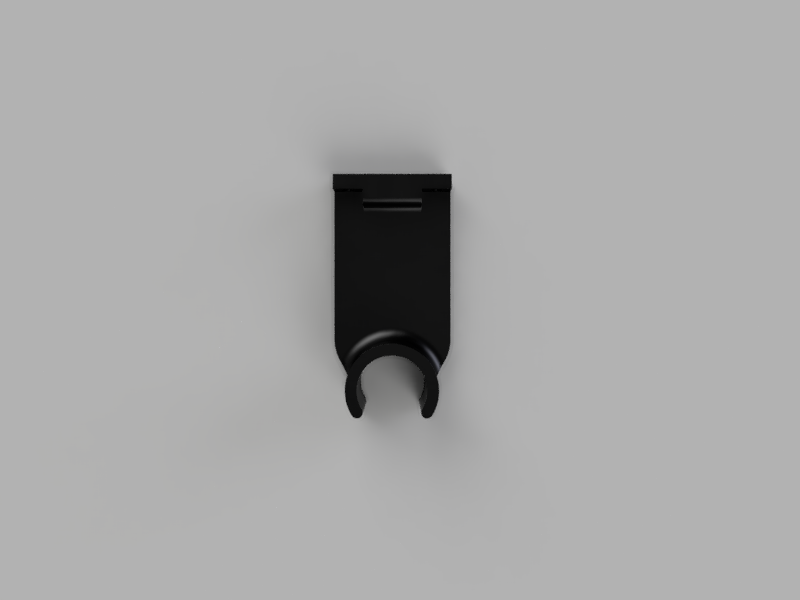

This is a hose clamp bracket designed to fit onto the Z axis extruded aluminum right below the stepper motor mounting plate. This version is designed with a clamp diameter of 45mm which holds the Bosch vacuum flex hose.

The dsign extends the clamp by 110mm away from the mountin gposition on the Z axis and is held in place by two 5mm x 20m cap head bolts with hammerhead T nuts.

3D Printing Suggestions;

• Layer Height - 0.20 mm
• Type - PLA
• Orientation - Base down as shown
• Infill - 20%
• Supports - Not needed

Final GCODE is not included with this digital download.

This is for digital files download ONLY and DOES NOT include ANY actual products or materials.

The included files are authorized for personal use only so please do not share the files.

Please feel free to ask any questions prior to purchase as well as file support questions.
